Forum / Your Projects, Technical Discussion / Polygon Pour Across Split Line Boundary In Rigid Flex Design

Polygon Pour Across Split Line Boundary In Rigid Flex Design

Th3Cob3s , 03-03-2026, 04:39 AM

Hello. I am doing my first ever rigid flex PCB and I have watched this video which has been really helpful.
https://www.youtube.com/watch?v=HLYWD0P5TOQ

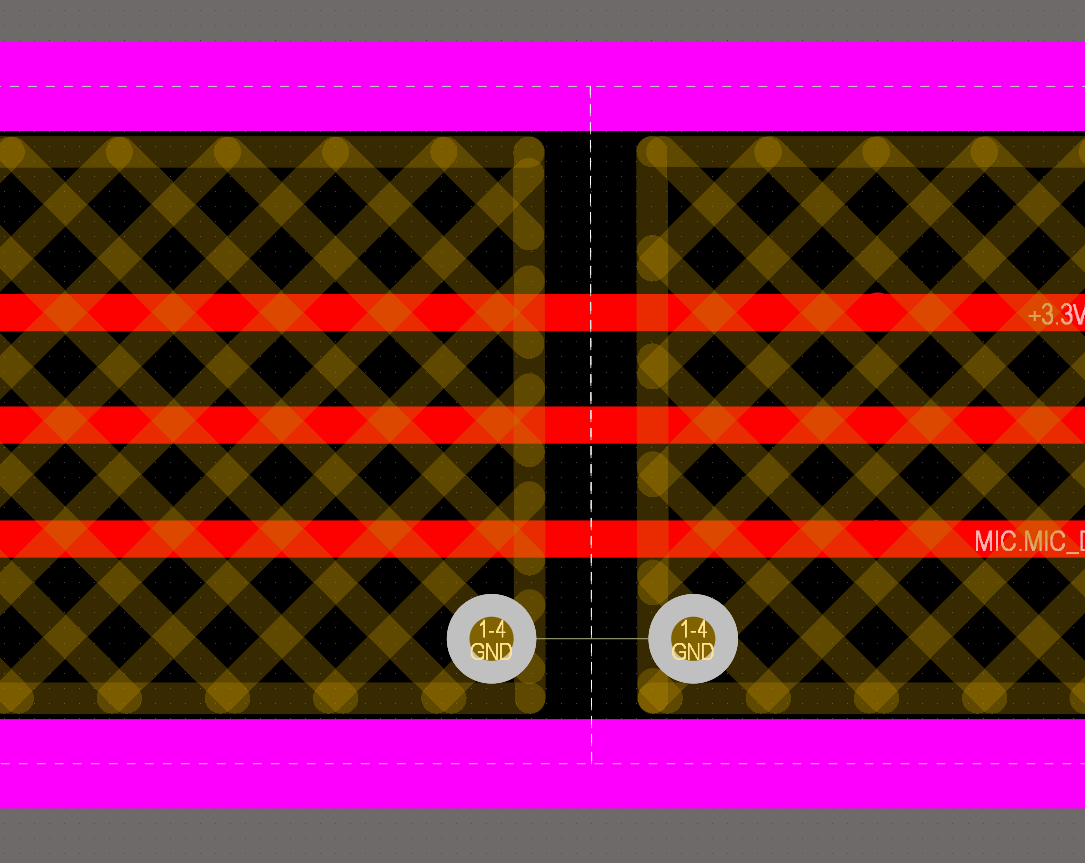

However, I am trying to get a reference (GND) polygon pour on the internal layer across the split boundary, as shown in the figure below but I have had no luck thus far.
Any help would be much appreciated thanks.

QDrives , 03-03-2026, 03:28 PM

"*split boundary*"? -- does it take the board outline clearance rule?
You may want to try to exclude the polygons from the board outline and use a keepout instead.

Th3Cob3s , 03-03-2026, 10:19 PM

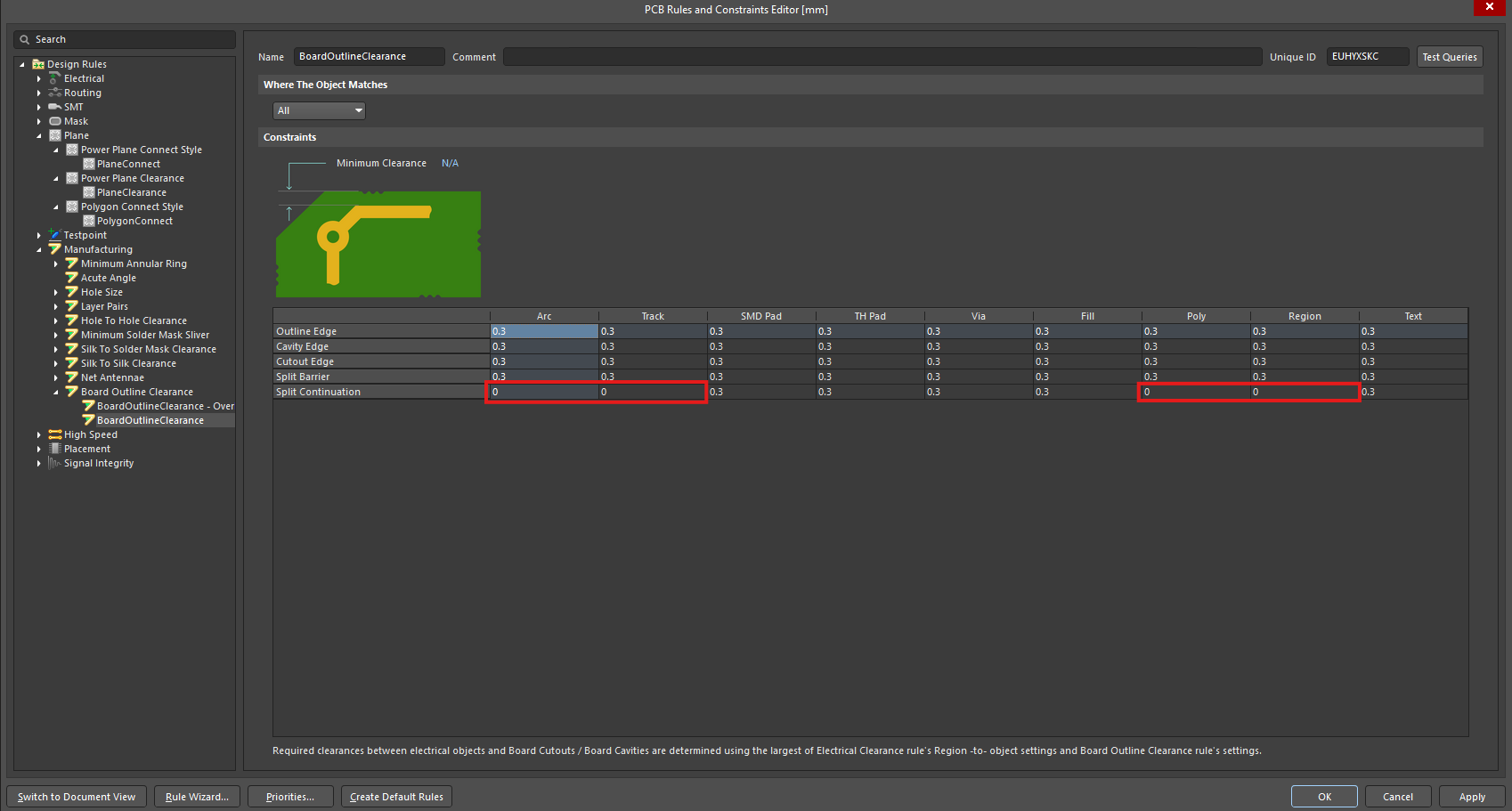

Looks like it had to do with the "Split Continuation" rule.
